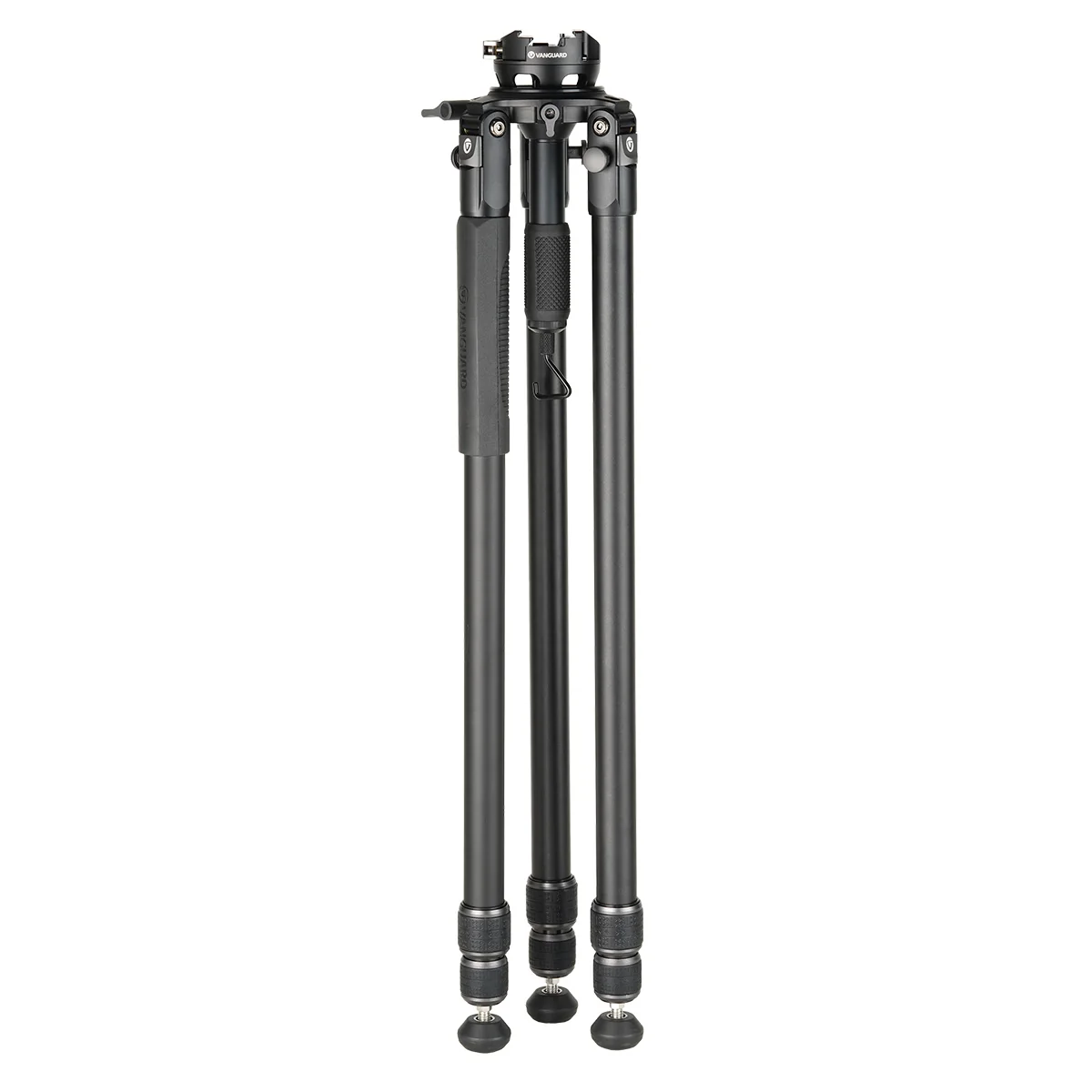

Vanguard Endeavor L 263AGM | Shooting Tripod with GM-70

The Vanguard Endeavor L 263AGM is a complete aluminium shooting tripod system with an integrated GM-70 rifle clamp. Designed for hunters, marksmen and outdoor shooters, it provides a stable and adjustable platform for rifle support across a range of terrain.

The tripod uses strong 26mm aluminium legs with CNC-machined components. Furthermore, the three-section legs extend from 22cm to 154cm using silent, easy-clean twist locks. As a result, users can set up quickly while keeping noise to a minimum.

Stable Support on Any Terrain

The Vanguard Endeavor L 263AGM features three leg angle settings at 23°, 50° and 80°. Therefore, users can adjust the tripod to suit different ground conditions and shooting positions.

The feet can also switch between rubber and metal spikes. Rubber feet provide grip on harder surfaces, while the spikes offer additional traction on softer terrain.

60mm Levelling Bowl

A solid 60mm aluminium levelling bowl provides ±15° of vertical movement and 360° panning. Consequently, the tripod allows smooth positioning and target tracking without moving the entire support system.

In addition, the head uses a 3/8″ attachment thread with grub screws for added stability. A second 3/8″ thread on the side also allows suitable accessories or a support arm to be fitted.

GM-70 Rifle Clamp

The integrated GM-70 rifle clamp adjusts from 30mm to 70mm. Therefore, it can accommodate a wide range of compatible rifle fore-ends.

Furthermore, the moulded rubber interior provides a secure grip while helping protect the rifle from scratches. The oversized adjustment wheel also makes clamp adjustments easier in challenging outdoor conditions.

The GM-70 includes an Arca-compatible base, adding further flexibility for compatible equipment. As a result, the tripod can also support suitable camera equipment when required.

Portable Shooting Support

Despite its strong aluminium construction, the Vanguard Endeavor L 263AGM weighs 2.6kg and folds to 760mm. The included padded shoulder strap also makes carrying the tripod more comfortable.

Overall, this complete shooting support system combines stability, adjustability and portability. Therefore, it is a practical choice for hunters and shooters who need dependable rifle support in the field.

Key Features

• Complete shooting tripod with GM-70 rifle clamp
• Durable aluminium construction
• CNC-machined aluminium components
• 26mm three-section legs
• Silent, easy-clean twist locks
• Maximum height of 1540mm
• Minimum height of 220mm
• 60mm aluminium levelling bowl
• ±15° vertical adjustment
• 360° pan
• Three leg angles: 23°, 50° and 80°
• Interchangeable rubber and spiked feet
• GM-70 rifle clamp
• Adjustable clamp width from 30–70mm
• Moulded rubber-lined clamp interior
• Oversized clamp adjustment wheel
• Arca-compatible base
• 3/8″ head attachment thread
• Additional 3/8″ accessory thread
• Padded shoulder carry strap

Specifications

• Model: Endeavor L 263AGM
• Material: Aluminium
• Load Capacity: 12kg
• Weight: 2.6kg
• Folded Length: 760mm
• Maximum Height: 1540mm
• Minimum Height: 220mm
• Leg Diameter: 26mm
• Leg Sections: 3
• Leg Lock Type: Silent, easy-clean twist lock
• Feet: Rubber and spiked
• Levelling Bowl: 60mm, non-removable
• Pan: 360°
• Vertical Adjustment: ±15°
• Head Attachment Thread: 3/8″
• Rifle Clamp: GM-70
• Clamp Range: 30–70mm
• Mounting: Arca-compatible
• Colour: Black

What’s in the Box

• 1 × Vanguard ENDEAVOR L 263AGM Levelling Shooting Rest with GM-70 Rifle Clamp
