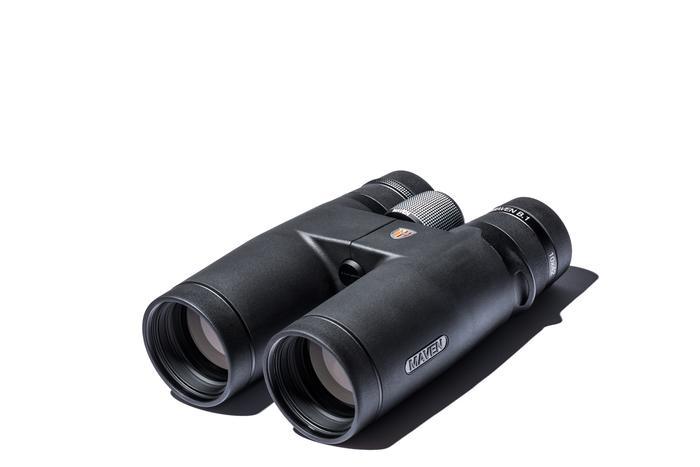

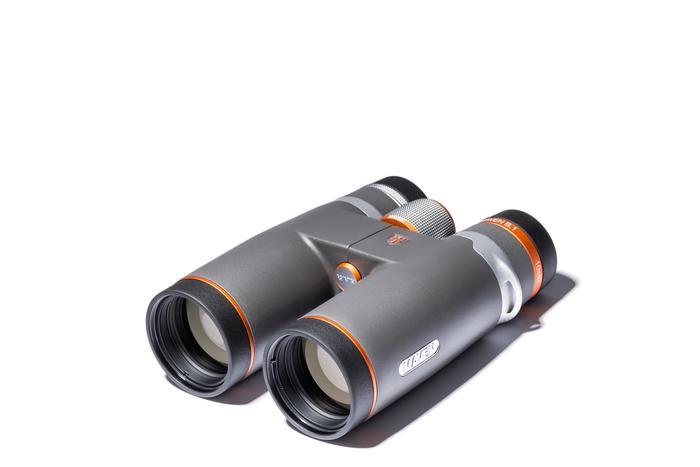

Maven B.1 Binocular 8×42 Orange

The Maven B.1 combines premium Japanese optical components with a strong magnesium chassis to provide clear, dependable performance in demanding outdoor conditions.

Its extra-low-dispersion glass helps reduce colour fringing and preserve fine detail, while dielectric-coated Schmidt-Pechan roof prisms support bright, accurate images. Choose the 8×42 model for a wider field of view and comfortable observation, or the 10×42 model for increased magnification and greater long-distance detail.

The nitrogen-purged body is rated IPX7 waterproof, helping prevent internal fogging and protect the binocular during wet-weather use. Multi-position eyecups, a ±3 diopter adjustment and a broad interpupillary range allow the binocular to be configured for different users.

Key features:

• Premium ED glass for improved clarity and colour accuracy
• Dielectric-coated Schmidt-Pechan roof prisms
• Scratch- and oil-resistant exterior lens coatings
• Lightweight and durable magnesium chassis
• Nitrogen-purged construction for fog resistance
• IPX7 waterproof rating: tested to 1 metre for 30 minutes
• Multi-position twist-up eyecups
• Tripod-adaptable design
• Japanese optical components, assembled in the USA
• Available in 8×42 and 10×42 configurations

Common specifications:

• Objective-lens diameter: 42mm
• Prism system: Schmidt-Pechan roof prism
• Objective construction: Four elements in three groups with ED glass
• Interpupillary adjustment: 56–73mm
• Diopter adjustment: ±3
• Close-focus distance: 6.6ft / approximately 2m
• Dimensions: 5 × 6.2 × 2.1in / approximately 127 × 158 × 53mm
• Waterproof rating: IPX7
• Operating temperature: -13°F to 140°F / -25°C to 60°C
• Storage temperature: -40°F to 158°F / -40°C to 70°C

8×42 specifications:

• Magnification: 8×
• Exit pupil: 5.25mm
• Field of view: 388ft at 1,000yd
• Angular field of view: 7.4°
• Apparent field of view: 59.2°
• Eye relief: 18.6mm
• Light transmission: 91.9%
• Weight: 29.125oz / approximately 826g

10×42 specifications:

• Magnification: 10×
• Exit pupil: 4.2mm
• Field of view: 341ft at 1,000yd
• Angular field of view: 6.5°
• Apparent field of view: 65°
• Eye relief: 16mm
• Light transmission: 90.9%
• Weight: 29.75oz / approximately 843g

Normally supplied with:

• Neoprene neck strap
• Objective and ocular lens covers
• Microfiber storage bag
• Manufacturer documentation

Important model notice:

This listing is for the original Maven B.1, not the newer B1.2. The original B.1 is no longer shown in Maven’s current binocular range and has been succeeded by the B1.2. Please confirm the selected magnification, remaining stock and included accessories before ordering.
