The LinkoGEAR HT-40CS is a portable carbon fiber shooting tripod designed for shooters, hunters and outdoor users who need a stable support platform without carrying an oversized setup. With large 40 mm carbon fiber legs, a CNC-machined aluminium ball head and a quick-detach Picatinny mount, this tripod combines practical field support with a compact design.

Furthermore, the LinkoGEAR HT-40CS provides a wide height range for different shooting and observation positions. It reaches a maximum height of 65.95 inches and adjusts down to just 8.5 inches. Therefore, you can use it for elevated positions as well as low-angle and prone shooting setups.

The four-section carbon fiber legs use aggressive-grip twist locks for quick and secure adjustment. In addition, the legs can spread to a very low angle, which makes the tripod useful when terrain or shooting position requires a lower setup.

Carbon Fiber Construction

The LinkoGEAR HT-40CS combines large-diameter carbon fiber legs with a CNC-machined aluminium ball head. The 40 mm leg tubes provide a strong foundation for the tripod, while the carbon fiber construction keeps the design suitable for mobile field use.

Moreover, the tripod weighs 5.84 lbs. As a result, it offers a balance between portability and a robust support structure for compatible rifles, optics and other field equipment.

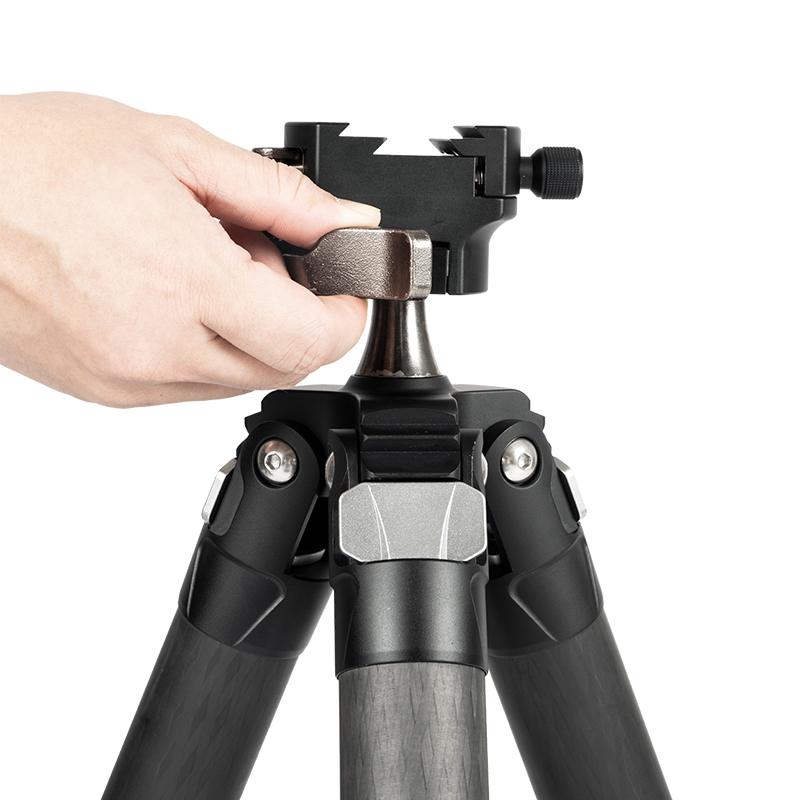

CNC Ball Head with Picatinny Mount

The CNC-machined ball head includes an integrated QD Picatinny adapter. Therefore, you can attach compatible Picatinny-mounted equipment directly to the tripod without constantly changing mounting adapters.

Furthermore, the ball head allows flexible positioning of your equipment. A built-in bubble level also helps you check the tripod’s position when setting up on uneven terrain.

Low-Angle Shooting Support

The LinkoGEAR HT-40CS offers a minimum height of only 8.5 inches. In addition, the legs can spread out towards a near-flat position for low-angle applications.

Therefore, the tripod works well for prone shooting, ground-level observation and other situations where a standard tripod cannot provide the required low position.

Adjustable Four-Section Legs

The four-section legs use aggressive-grip twist locks for height adjustment. Consequently, you can change the tripod height to suit the terrain and your preferred shooting position.

Moreover, the large 40 mm starting leg diameter provides a substantial support structure while the carbon fiber construction keeps the tripod suitable for field transport.

Key Features

• Portable carbon fiber shooting tripod
• 40 mm carbon fiber starting leg diameter
• Four-section adjustable legs
• Aggressive-grip twist-lock leg system
• CNC-machined aluminium ball head
• Integrated QD Picatinny adapter
• Built-in bubble level
• Maximum height of 65.95 inches
• Minimum height of 8.5 inches
• Near-flat low-angle leg positioning
• Suitable for shooting, scouting and glassing
• Compact field-oriented design

Specifications

• Model: HT-40CS
• Product Type: Carbon Fiber Shooting Tripod
• Construction: Carbon fiber legs + CNC aluminium ball head
• Leg Diameter: Starting at 40 mm
• Leg Sections: 4
• Maximum Height: 65.95 in
• Minimum Height: 8.5 in
• Weight: 5.84 lbs
• Mount: QD Picatinny
• Head: CNC-machined aluminium ball head
• Bubble Level: Integrated
• Leg Locks: Aggressive-grip twist locks
• Low-Angle Support: Yes
• Applications: Shooting, hunting, scouting and glassing

What’s in the Box

• 1 × LinkoGEAR HT-40CS Carbon Fiber Shooting Tripod
