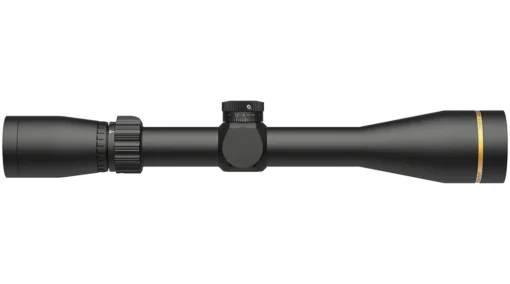

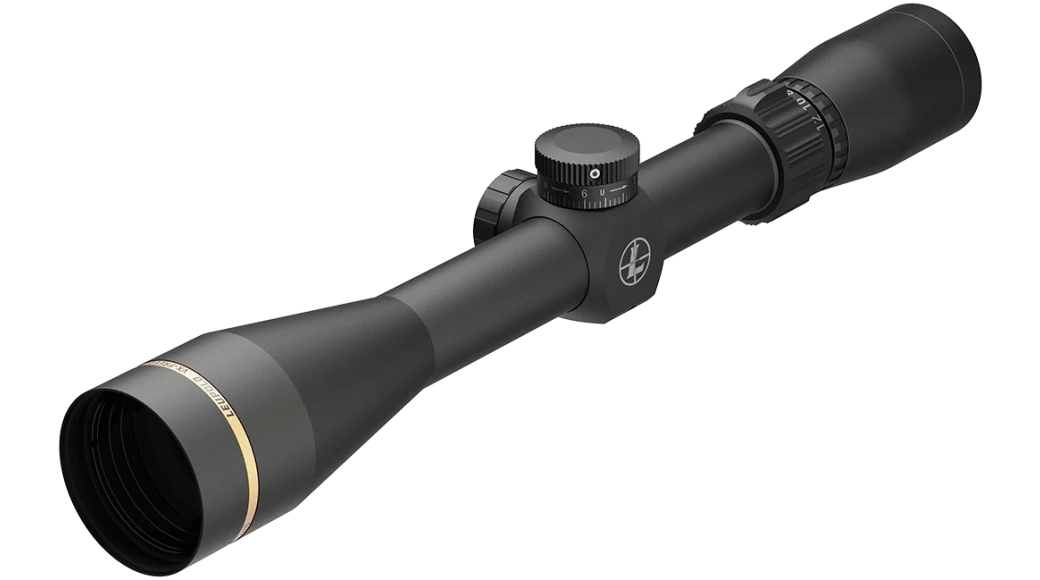

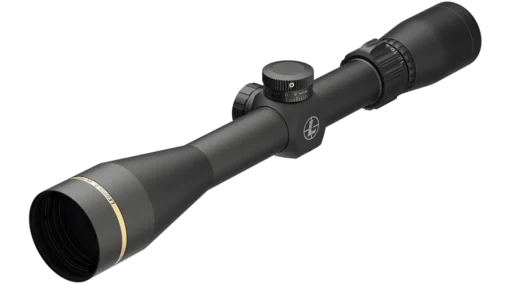

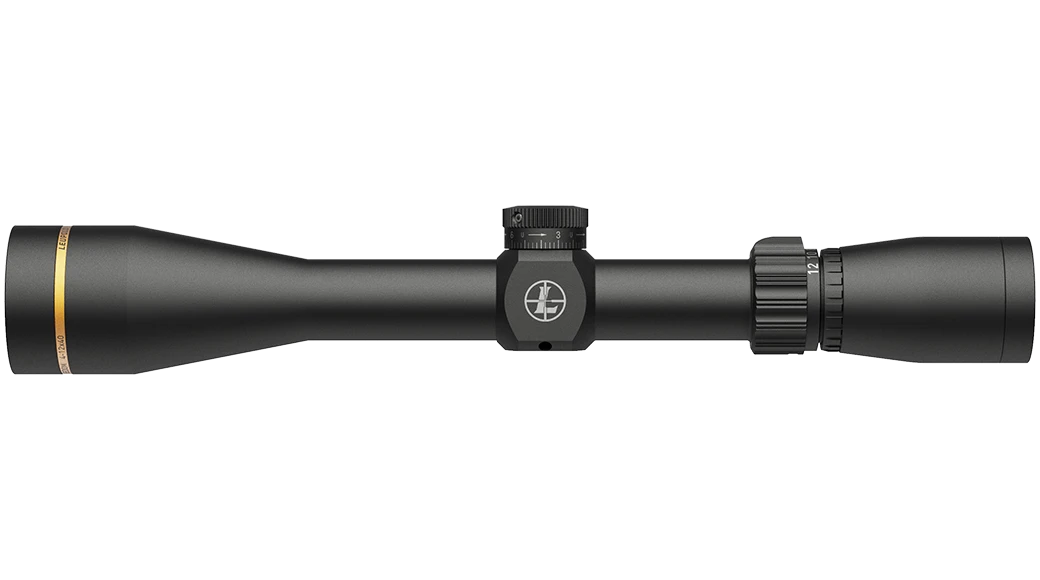

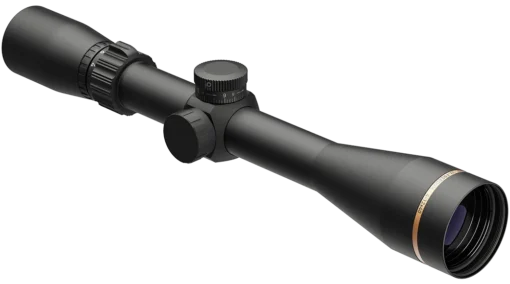

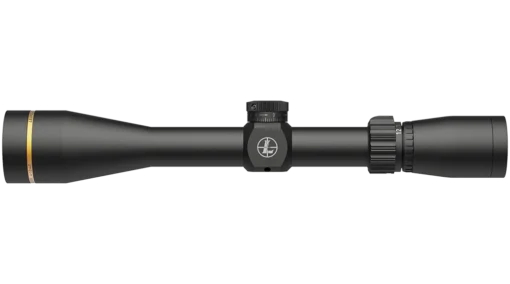

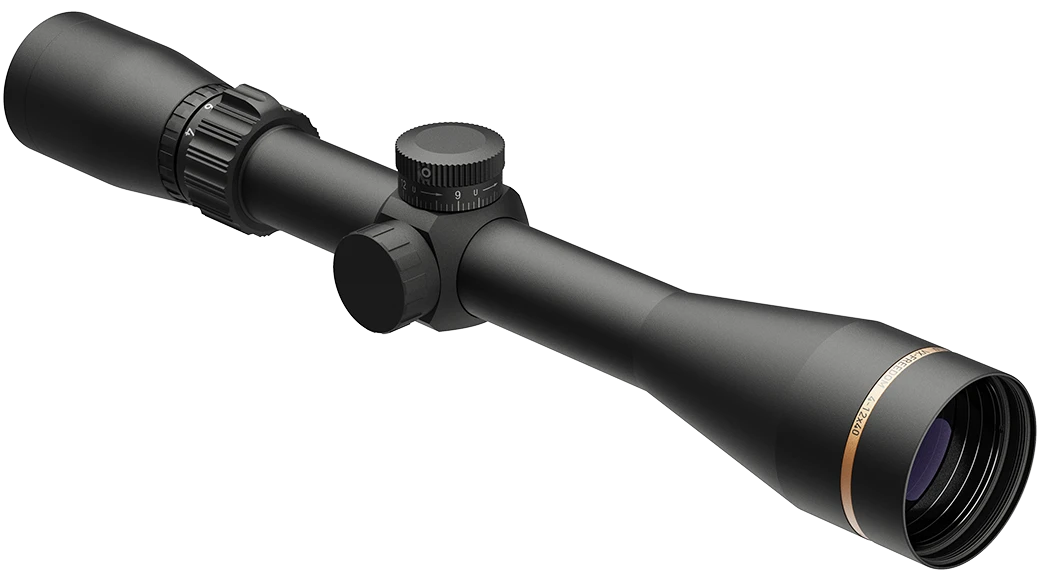

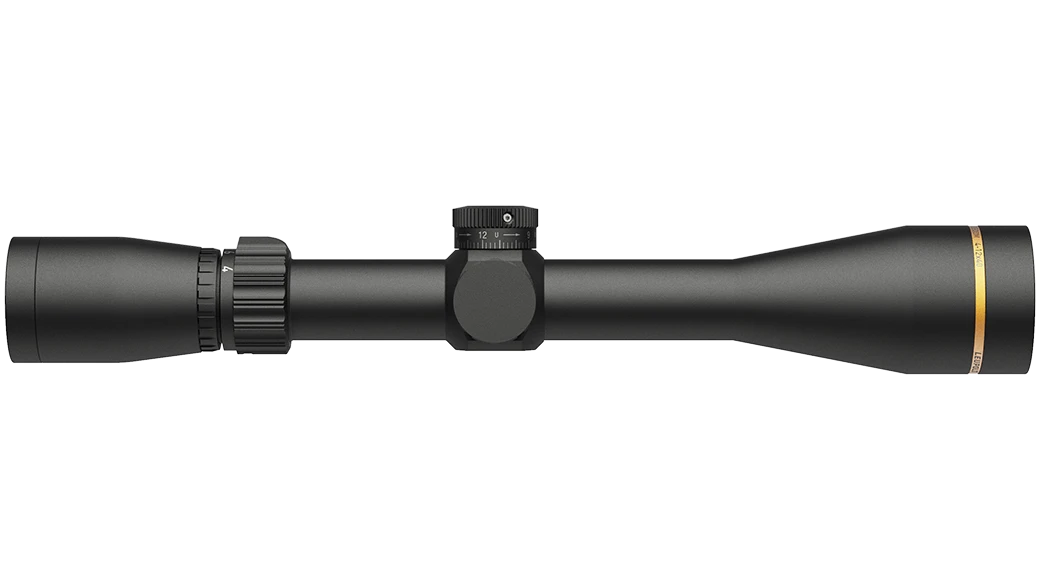

Leupold VX-FREEDOM 4-12X40 CDS 1-INCH TRI-MOA
R 12,782.00 Incl. VAT
The VX®-Freedom® 4-12x40mm delivers legendary Leupold® performance and dependability in a versatile magnification range that’s ideal for mid to longer-range shots. It’s also equipped with the Leupold® Custom Dial System® (CDS), which gives you a customizable ballistics solution at your fingertips.
Leupold VX-FREEDOM 4-12X40 CDS 1-INCH TRI-MOA
The VX®-Freedom® 4-12x40mm delivers legendary Leupold® performance and dependability in a versatile magnification range that’s ideal for mid to longer-range shots. It’s also equipped with the Leupold® Custom Dial System® (CDS), which gives you a customizable ballistics solution at your fingertips. This system is easy to install and even easier to use.
Built around Leupold’s Advanced Optical System, the VX-Freedom delivers tried and true light transmission, best in class glare reduction in harsh light, and the resolution and clarity that recreational sportsmen and sportswomen demand.
The VX-Freedom is 100% waterproof and fogproof, and guaranteed to get the job done every time. And like all Leupold riflescopes, it’s designed, machined, and assembled in the USA and guaranteed for life.
Detailed reticle info
Tri-MOA
- Proprietary Leupold® design
- Based off the T-MOA® reticle
- Provided hash marks in 1 MOA increments
- Features 10 MOA of measurement in each direction
- 5 MOA hash is wider for quick reference
- Open upper half of the reticle for observation and spotting
- Not caliber specific
- Rear (second) focal plane
Specifications
| BDC Dial Included | No |
|---|---|
| Daylight Bright Illumination | No |

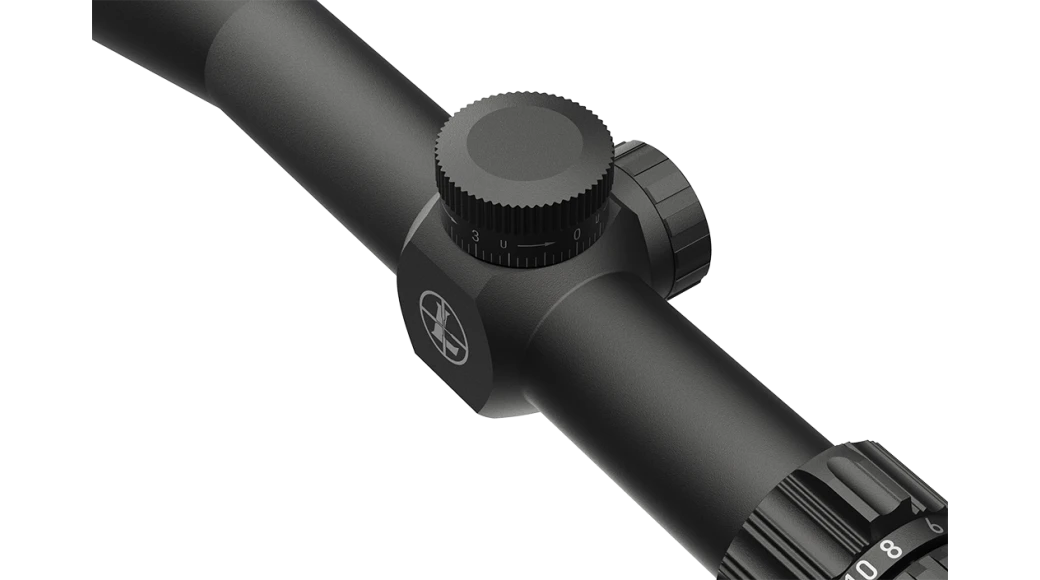

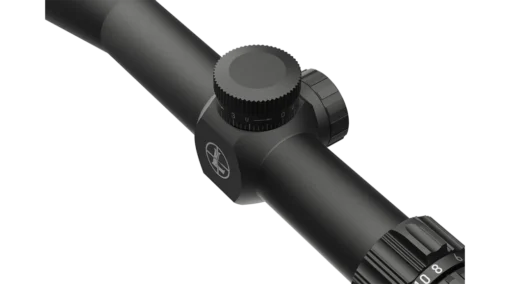

| Elevation Adjustment Type | CDS |
| Electronic Reticle Level | No |
| Illuminated Reticle | No |
| Locking Dial | No |
| Magnification Type | Variable |
| Motion Sensor Technology (MST) | No |
| Nightvision Compatible Illumination | No |
| Reticle Focal Plane | Second Focal Plane |
| Revolution Indicator | No |
| Reticle | Tri-MOA |
| Rezero Type | Set Screw |
| Reticle Type | Second Focal Plane |
| Adjustable Objective | No |
| Precision Side Focus | No |
| Windage Adjustment Type | Finger Click |
| Weight (oz) | 13.1 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 80 |
| Elevation Adjustment Range (MIL) | 23 |
| Elevation Adjustment Range (cm @ 100m) | 233 |
| Elevation Adjustment Per Revolution | 15 MOA |
| Elevation Dial Travel Limit | 14MOA |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 80 |
| Windage Adjustment Range (MIL) | 23 |
| Windage Adjustment Range (cm @ 100m) | 233 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 12 |
| Magnification Min | 4 |
| Objective Lens Diameter (mm) | 40 |
| Linear FOV Low Mag (ft@100yds) | 21.5 |
| Linear FOV High Mag (ft@100yds) | 10 |
| Angular FOV Low Mag (Degrees) | 4.1 |
| Angular FOV High Mag (Degrees) | 1.9 |
| Eye Relief Low Mag (in) | 4.9 |
| Eye Relief High Mag (in) | 3.7 |
| Fixed Parallax-Free Distance (yd) | 150 |
Dimensions
| A Total Length (in) – A | 12.49 |
|---|---|
| B Total Mounting Space (in) – B | 5.39 |
| C Front Mounting Space (in) – C | 2.32 |
| D Rear Mounting Space (in) – D | 1.85 |
| E Eyepiece Length (in) – E | 3.5 |
| F Objective Length (in) – F | 3.6 |
| G Objective Diameter (in) – G | 1.83 |
| H Eyepiece Diameter (in) – H | 1.56 |
| K Maintube Diameter (mm/in) – K | 1 Inch |
Brand
Leupold
