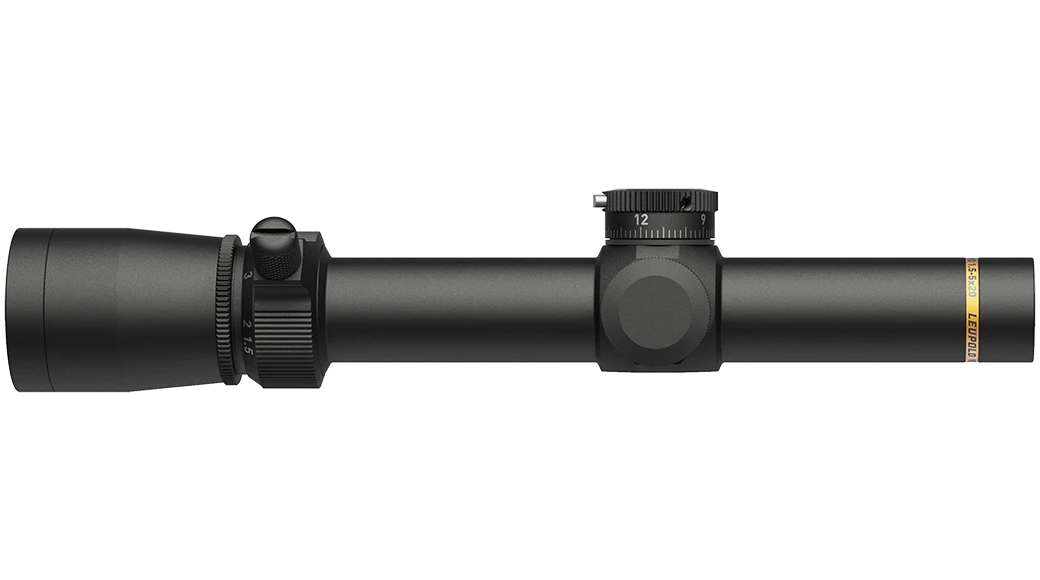

Name: Leupold VX-3HD 1.5-5X20 1-INCH CDS-ZL DUPLEX
SKU: NAM-LPVX3HD-001
Price: 13298.00 ZAR
Availability: InStock

R 13,298.00 Incl. VAT

The VX®-3HD 1.5-5x20mm delivers legendary performance and extreme clarity in an incredibly tough, lightweight package. It’s the perfect workhorse for those close to mid-range shots.

SKU: NAM-LPVX3HD-001 Category: Leupold

Leupold VX-3HD 1.5-5X20 1-INCH CDS-ZL DUPLEX

The VX®-3HD 1.5-5x20mm delivers legendary performance and extreme clarity in an incredibly tough, lightweight package. It’s the perfect workhorse for those close to mid-range shots, whether you’re on a hunt or at the range.

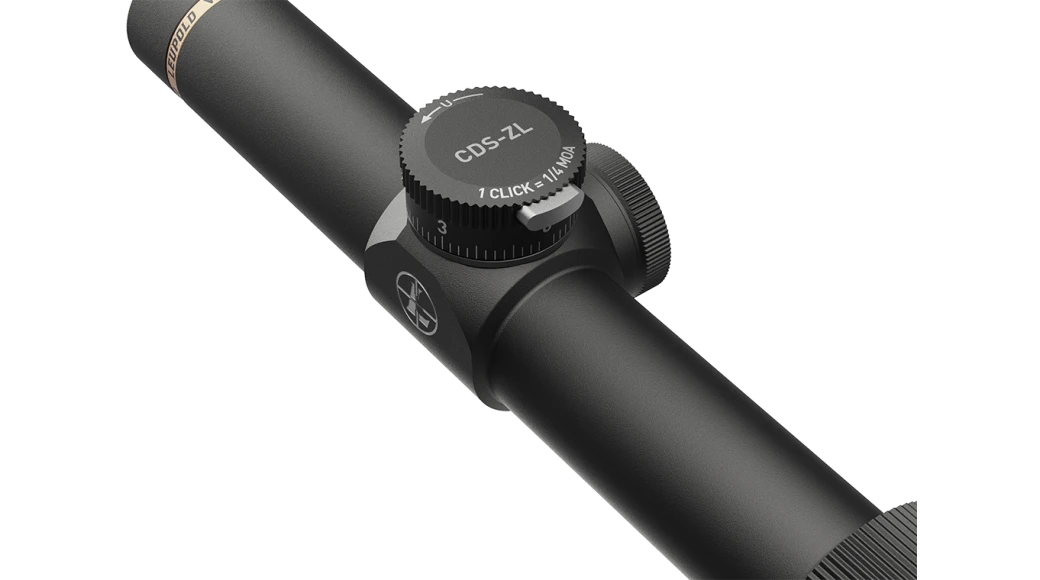

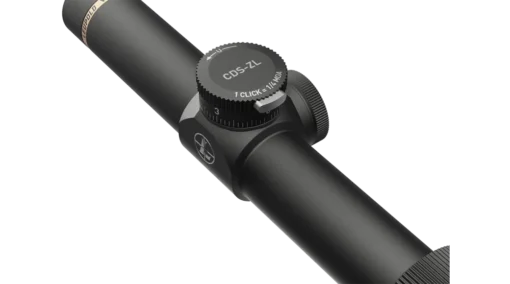

The VX-3HD delivers outstanding performance in low light. With Leupold’s Elite Optical System, the VX-3HD delivers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand. We also gave it match-grade repeatability and ergonomic controls that are easy to read and use, even with gloves. The VX-3HD is the best lightweight, low-light hunting scope in its class. And with its low-profile, one-revolution CDS® ZeroLock® dial, you can be confident your dial will only move when you want it to. Push the button to unlock it, dial, and then rotate it back to zero to lock it in place. It’s that simple.

Everything we put into your VX-3HD is there to help you tag out. Like all Leupold riflescopes, it’s designed, machined, and assembled in the USA and guaranteed for life.

Detailed reticle info

Duplex®

Download PDF

Invented in 1962 by Leupold®
Defined by heavy posts
Stands out against cover in low light
Quick target acquisition with thin lines at the center
Most popular reticle in the world
Rear (second) focal plane

Specifications

More Information
BDC Dial Included	No
Custom BDC Dial Compatible	Yes
Daylight Bright Illumination	No
Elevation Adjustment Type	CDS-ZL
Electronic Reticle Level	No
Illuminated Reticle	No
Locking Dial	Yes
Magnification Type	Variable
Motion Sensor Technology (MST)	No
Nightvision Compatible Illumination	No
Reticle Focal Plane	Second Focal Plane
Revolution Indicator	No
Reticle	Duplex
Rezero Type	Set Screw
Reticle Type	Second Focal Plane
Adjustable Objective	No
Precision Side Focus	No
Windage Adjustment Type	Finger Click
Weight (oz)	10.1
Elevation Adjustment Value per Click	1/4MOA
Elevation Adjustment Range (MOA)	125
Elevation Adjustment Range (MIL)	36.4
Elevation Adjustment Range (cm @ 100m)	363.6
Elevation Adjustment Per Revolution	15 MOA
Elevation Dial Travel Limit	14.5MOA
Windage Adjustment Value per Click	1/4MOA
Windage Adjustment Range (MOA)	125
Windage Adjustment Range (MIL)	36.4
Windage Adjustment Range (cm @ 100m)	363.6
Windage Adjustment Per Revolution	15 MOA
Magnification Max	5
Magnification Min	1.5
Objective Lens Diameter (mm)	20
Linear FOV Low Mag (ft@100yds)	67.6
Linear FOV High Mag (ft@100yds)	24.1
Angular FOV Low Mag (Degrees)	12.9
Angular FOV High Mag (Degrees)	4.6
Eye Relief Low Mag (in)	4.4
Eye Relief High Mag (in)	3.6
Fixed Parallax-Free Distance (yd)	150

Dimensions

A Total Length (in) – A	9.71
B Total Mounting Space (in) – B	5.98
C Front Mounting Space (in) – C	2.27
D Rear Mounting Space (in) – D	2.48
E Eyepiece Length (in) – E	3.08
G Objective Diameter (in) – G	1
H Eyepiece Diameter (in) – H	1.56
K Maintube Diameter (mm/in) – K	1 Inch
