Hikvision DS-7104HGHI-M1/T 4-Channel Turbo HD DVR

Hikvision DS-7104HGHI-M1/T 4-Channel 1080p Lite Turbo HD DVR – Motion Detection 2.0

Short description

Manage your CCTV system with this compact Hikvision 4-channel DVR. Features include human and vehicle classification, H.265 Pro+ compression, audio over coax and Hik-Connect remote access. Supports one SATA hard drive up to 4TB.

Product description

Build a practical surveillance setup for your home, shop or office with the Hikvision DS-7104HGHI-M1/T Turbo HD DVR.

Motion Detection 2.0 helps identify people and vehicles, reducing unwanted alerts from everyday movement. Smart search also helps you locate relevant recordings more quickly.

Support for several camera formats makes this recorder useful for upgrading an existing CCTV installation. H.265 Pro+ compression helps reduce storage requirements, while Hik-Connect provides remote access when the system is configured and connected to the internet.

The Mini 1U enclosure fits neatly into smaller installations. Add a suitable surveillance hard drive to store your recordings.

Technical specifications

Specification	Detail
Model	DS-7104HGHI-M1/T

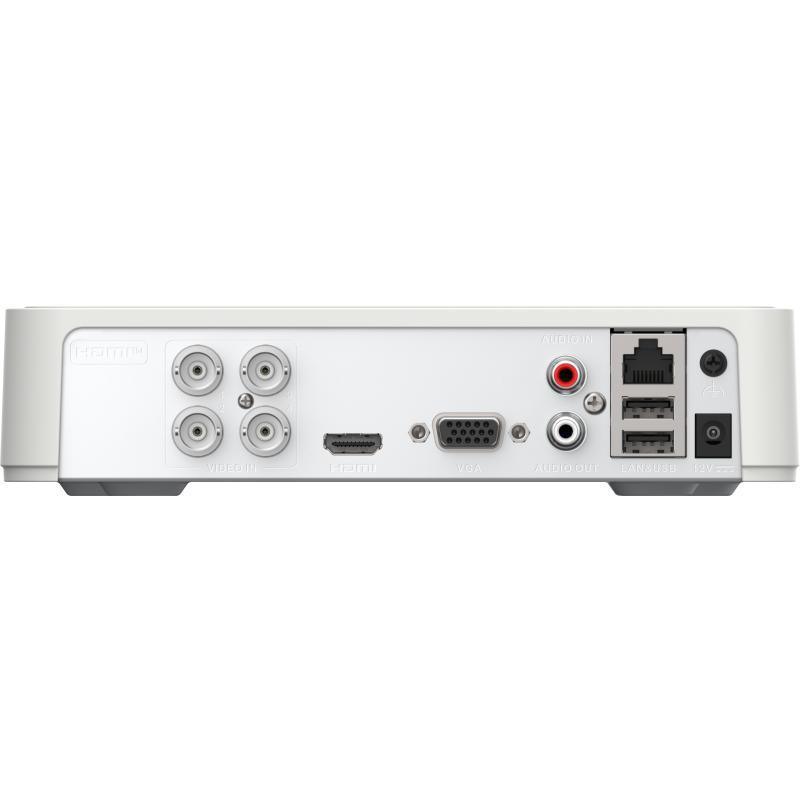

Analogue inputs	4 × BNC
Camera formats	HDTVI, AHD, HDCVI, CVBS and IP
IP camera support	1 IP channel; expandable to 5 by replacing analogue channels
Maximum IP resolution	2MP
Analogue recording	Up to 1080p Lite at 25/30fps
Intelligent detection	Human/vehicle classification on all analogue channels
Compression	H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
Monitor outputs	HDMI and VGA; simultaneous output, up to 1080p
Audio inputs	1 × RCA; 4 channels over coax
Audio output	1 × RCA
HDTVI two-way audio	Supported with compatible cameras
Simultaneous playback	4 channels
Storage	1 × SATA; up to 4TB
Network	1 × RJ45, 10/100Mbps
USB	2 × USB 2.0
Power	12V DC, 1.5A
Consumption	≤10W without HDD
Dimensions	200 × 200 × 48mm
