Hikvision DS-2FA1205-C8(EUR) 8-Channel CCTV Power Supply – 12V DC, 5A, 60W
Short description
Power compatible CCTV cameras from one compact supply. Eight outputs simplify power distribution, with built-in overload, short-circuit and overvoltage protection.
Product description

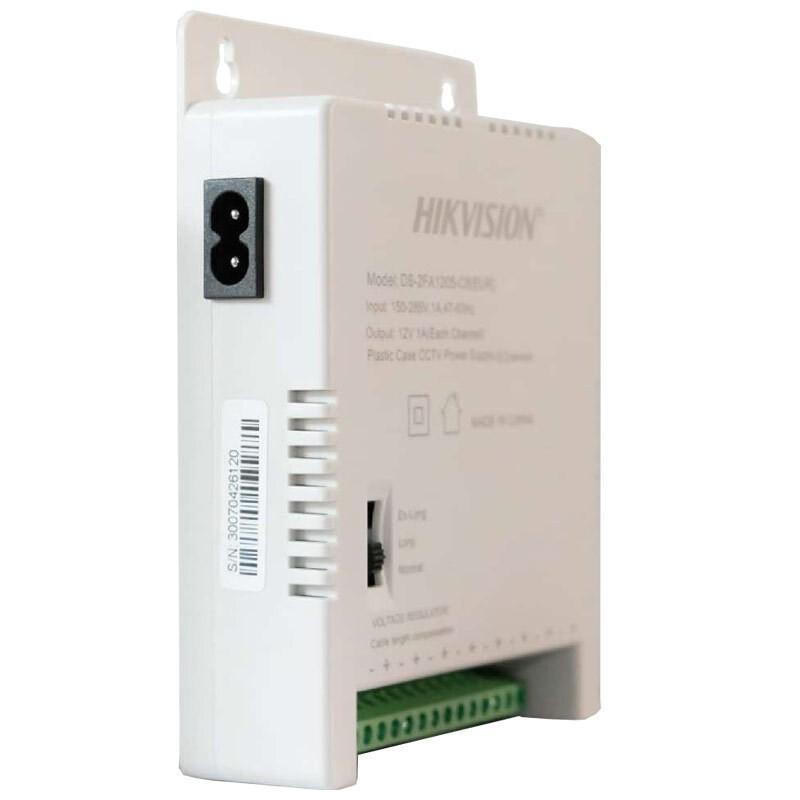

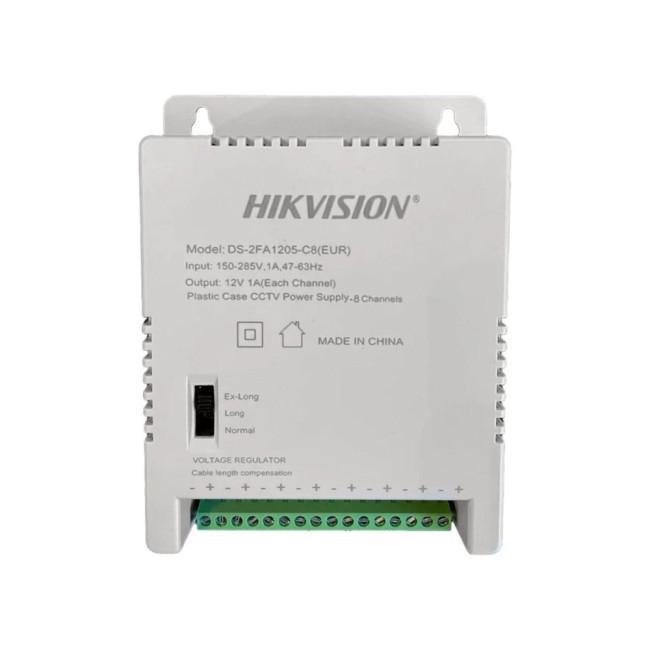

Keep your CCTV installation organised with the Hikvision DS-2FA1205-C8(EUR). This switching power supply provides centralised DC power for compatible cameras, reducing the need for individual adaptors.
Selectable cable-length compensation helps accommodate voltage drop. Use elevated settings only after checking the voltage reaching each camera against its permitted input range.
Specifications
| Specification | Details |
|---|---|
| SKU | DS-2FA1205-C8(EUR) |
| Outputs | 8 channels |
| Nominal output | 12V DC |
| Maximum per channel | 1A |
| Maximum combined current | 5A across all channels |
| Rated power | 60W |
| AC input | 150–285V AC, 47–63Hz |
| Voltage settings | Normal: 12V; Long: 13.5V; Ex-Long: 15V |
| Protection | Overcurrent, short circuit, overvoltage |
| DC connections | Terminal block |
| AC connector | C8 inlet |
| Indicator | Green LED |
| Operating temperature | 0°C to 40°C |
| Dimensions | 144 × 109.5 × 33mm |
| Colour | White |
Brand
HIKVISION
