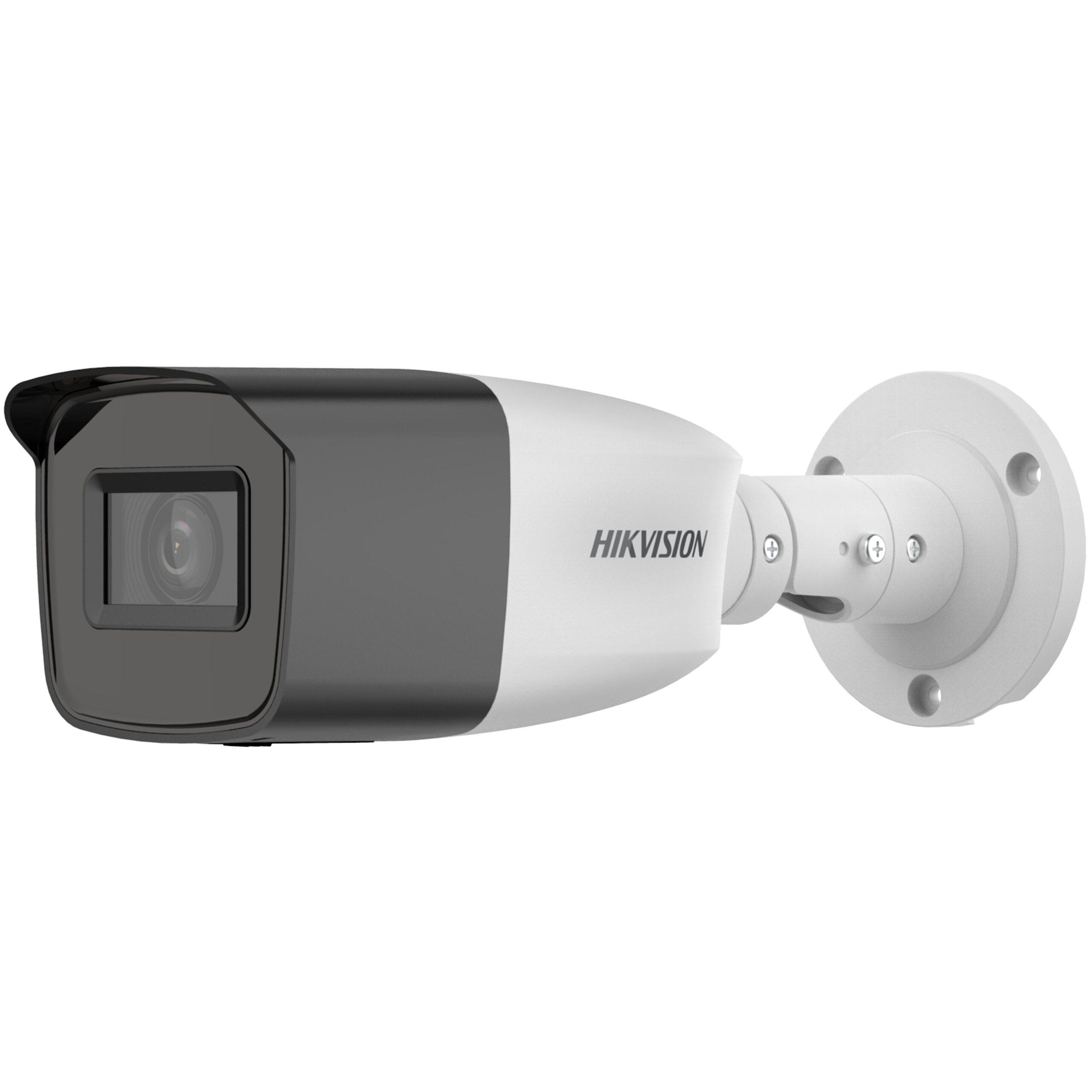

Hikvision DS-2CE19D0T-VFIT3F 2MP Manual Varifocal Bullet Camera – 2.7–13.5mm

Short Description

The Hikvision DS-2CE19D0T-VFIT3F is a 2MP Full HD analogue CCTV bullet camera featuring an adjustable 2.7–13.5mm manual varifocal lens. With up to 40 metres of infrared night vision, Digital WDR and a choice of four analogue video formats, it provides flexible surveillance for homes, retail premises, warehouses, entrances and outdoor security installations. Adjust the lens during installation to select a wider viewing angle or a more focused view of a specific area.

Full Product Description

Full HD 1080p Surveillance

The Hikvision DS-2CE19D0T-VFIT3F delivers 1920 × 1080 Full HD video for everyday security monitoring. Its 2MP CMOS image sensor provides clear images for monitoring entrances, access points, driveways and commercial premises.

Adjustable 2.7–13.5mm Varifocal Lens

The manual varifocal lens allows installers to adjust the field of view according to the installation requirements. Use a wider setting for broader scene coverage or a longer focal length for a more focused view of a particular area.

The approximate horizontal field of view ranges from 100° at the wide end to 30° at the narrow end.

Infrared Night Vision up to 40m

Integrated infrared illumination provides visibility up to 40 metres in low-light or nighttime conditions. Smart IR helps control infrared exposure for improved visibility of subjects at different distances.

Digital Image Enhancement

Digital Wide Dynamic Range (DWDR), backlight compensation (BLC), highlight compensation (HLC) and 2D digital noise reduction help improve image usability in challenging lighting conditions.

Flexible Analogue DVR Compatibility

The camera supports four switchable analogue video formats: TVI, AHD, CVI and CVBS. This allows integration with compatible DVR systems, subject to the recorder’s supported video standards and resolution.

Outdoor-Ready Construction

The camera features a metal front cover and plastic main body, with an IP67 protection rating against dust and water ingress when correctly installed. Its specified operating temperature range is -40°C to 60°C.

Key Features

2MP CMOS image sensor
Full HD 1920 × 1080 resolution
Manual 2.7–13.5mm varifocal lens
Approx. 100° to 30° horizontal field of view
Infrared night vision up to 40m
Smart IR
Digital Wide Dynamic Range (DWDR)
Backlight compensation (BLC)
Highlight compensation (HLC)
2D digital noise reduction
Switchable TVI / AHD / CVI / CVBS output
IP67 dust- and water-resistance rating
Metal front cover and plastic main body
12V DC power supply
Maximum power consumption: 5W

Recommended Applications

Residential CCTV installations
Retail stores and shopfronts
Commercial buildings and offices
Gates and access points
Driveways and perimeter monitoring
Warehouses and workshops
Areas requiring adjustable camera framing

Installation and Compatibility

This is a wired analogue HD CCTV camera, not an IP or Wi-Fi camera. It requires a compatible DVR, suitable video cabling and a 12V DC power supply. The varifocal lens is manually adjusted during installation; it is not a motorised zoom lens.

Confirm the DVR’s supported video format before installation.

Brand: Hikvision
Model: DS-2CE19D0T-VFIT3F
Resolution: 2MP Full HD
Lens: 2.7–13.5mm manual varifocal
Night vision: Up to 40m
Video output: TVI / AHD / CVI / CVBS
Protection: IP67
