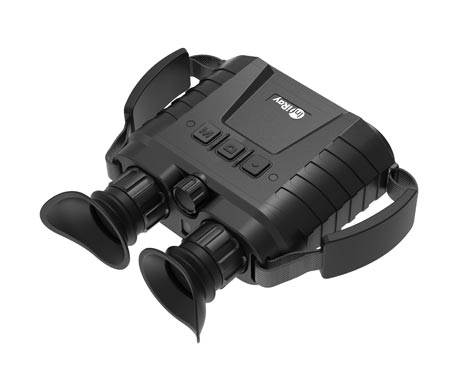

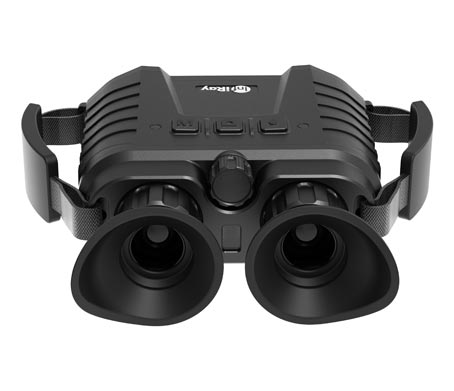

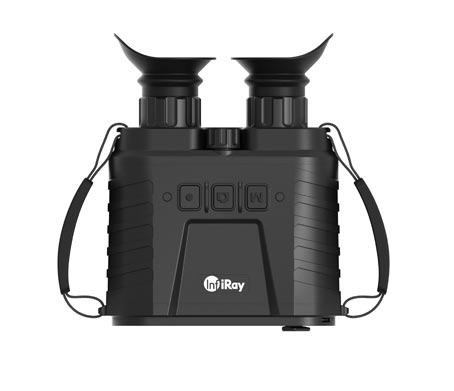

Features of PF6 Heat Vision Binoculars
1. Infrared and I2 dual channels, binocular observation;
2. 40mk highly-sensitive VOx infrared detector, 10-3Lux low illumination CMOS sensor;
3. Image fusion in multiple modes, richer target details;
4. Built-in photo taking, video recording, storage functions (32 GB memory), playback of history videos on the local device;
5. Ergonomic design;
6. Ingress protection rating: IP67.
Video of PF6 Heat Vision Binoculars
Applications of PF6 Heat Vision Binoculars


Open Source
Learn More
Specifications of PF6 Heat Vision Binoculars
| Detector | Infrared | Visible light |
| 640×512/17μm | 800×600/18μm | |
| Recognition Distance (People) | 630m | 470m |
| Recognition Distance (Vehicle) | 1140m | 850m |
| Low Illumination Capability | — | <0.001Lux |
| NETD | ≤40mK | — |
| Frame Rate | 50Hz | |
| FOV | 16.1°×12.8° | |
| Resolution | 800×600, 0.61 inch | |
| Observation Mode | Infrared, visible light, color fusion, black-white fusion | |
| Diopter | -4~4 | |
| Magnification | 1.9-7.5× | |
| Digital Zoom | 1×/2×/4× | |
| Internal Memory | 32G | |
| Operating Time | ≥5h | |
| Battery | 18650×3 | |
| Weight (with battery) | ≤1050g | |
| Dimensions (mm) | 180×155×65 | |
| Ingress Protection Rating | IP67 | |
| Operating Temperature | -40°C~+55°C | |
| Storage Temperature | -55°C~+70°C | |
