HIKMICRO LYNX HANDHELD LE10 S THERMAL
HIKMICRO Lynx LE10S Handheld Thermal Monocular. Lynx LE10S thermal monocular is equipped with a 256 × 192 infrared detector and an 800 × 600 OLED display. It supports functions of observation, distance measurement, hotspot, and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness. The monocular is mainly applied to scenarios such as hunting, hiking, searching, and rescuing, etc.
Model number: HM-TS02-10S1G/W-LE10S
HIKMICRO Lynx LE10S Handheld Thermal Monocular. Lynx LE10S thermal monocular is equipped with a 256 × 192 infrared detector and an 800 × 600 OLED display. It supports functions of observation, distance measurement, hotspot, and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness. The monocular is mainly applied to scenarios such as hunting, hiking, searching, and rescuing, etc.
Description

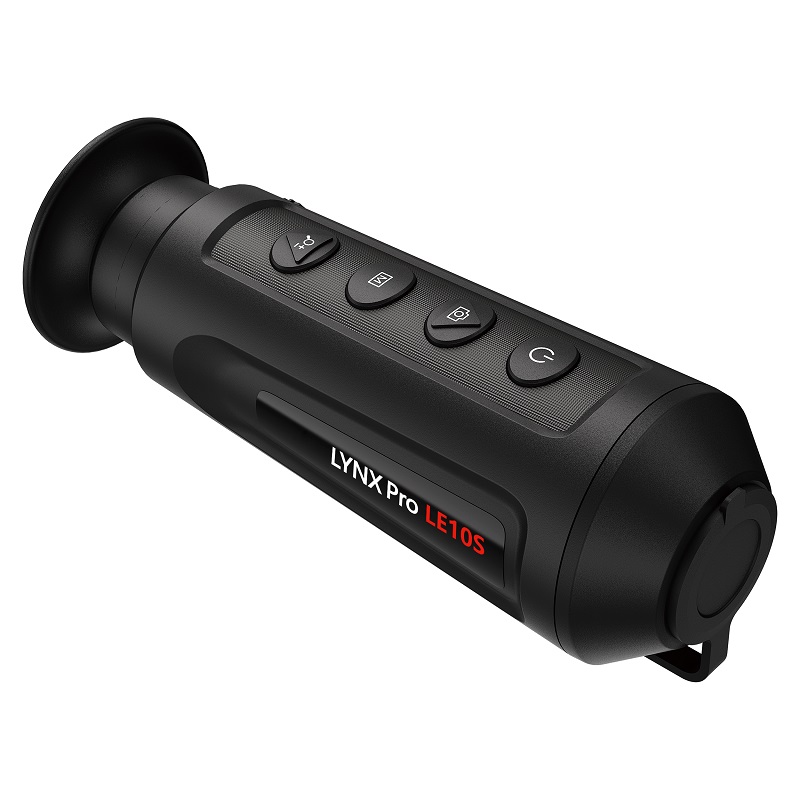

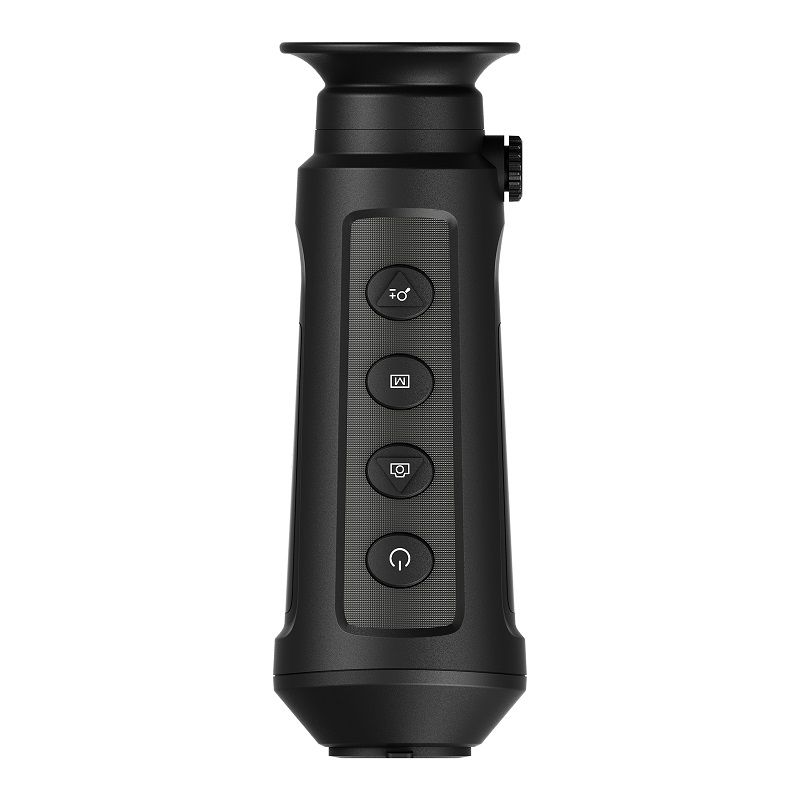

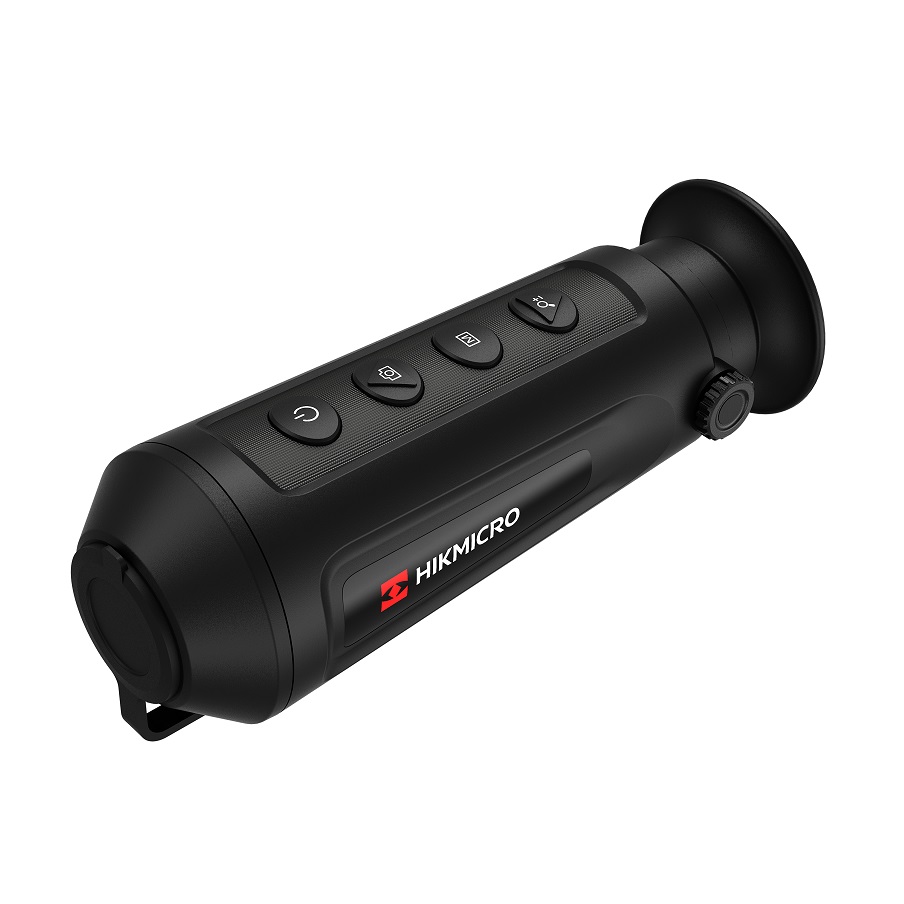

HIKMICRO Lynx LE10S Handheld Thermal Monocular.
Lynx LE10S thermal monocular is equipped with a 256 × 192 infrared detector and an 800 × 600 OLED display. It supports functions of observation, distance measurement, hotspot, and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness. The monocular is mainly applied to scenarios such as hunting, hiking, searching, and rescuing, etc.
Key Features
- 256 × 192 resolution, 12 μm, high sensitivity detector
- NETD less than 35 mK (@25°C, F# = 1.0)
- Adaptive AGC, DDE, 3D DNR
- 800 × 600 resolution 0.32” OLED display
(Previous model – LC06: 720 × 540 resolution 0.2” OLED display) - Built-in rechargeable lithium battery
- Up to 8 hours continuous running
- Support hotspot
Technical Specifications
Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Resolution: 256 × 192
- Frame Rate: 50 Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 35 mK (@25°C, F# = 1.0)
- Lens (Focal Length): 9.7 mm, F1.0
- Focus Mode: Focus Free
- Detection Range: 500 m
- Focusing Distance: 4 m
- Magnification: 1.5× to 12.0× (8×)
- Field of View (H × V), Degrees / m @100 m: 18.0° × 13.6° / 31.7 m × 23.8 m
Image Display
- Display: 800 × 600, 0.32-inch, OLED
- Palettes: Black Hot, White Hot, Red Hot, Fusion
- FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
- Exit Pupil: 20 mm
- Eye Relief: 6 mm
- Diopter (Range): -5D to +4D
- Brightness Adjustment: Yes
- Tone Adjustment: Cold, Warm
- Contrast Adjustment: Yes
System
- Record Video: Yes
- Capture Snapshot: Yes
- Audio Recording: Yes
- Standby Mode: Yes
- Storage: Built-in memory module (8 GB)
- PIP: Yes
- Hotspot: Yes
- Hot Track: Yes
- Distance Measurement: Yes
Power Supply
- Battery Type: Rechargeable Lithium Battery
- Battery Operating Time: 8 hours continuous running with hotspot function off (@25°C);
6 hours continuous running with hotspot function on (@25°C)
- Type-C Power Supply: DC 5 V/2 A; Supports External Power Supply
General
- Protection Level: IP67
- Dimension: 158.3 mm × 61 mm × 57 mm
- Working Temperature: – 20°C to 55°C
- Weight: 260 g
What’s in the box
- HIKMICRO Lynx LE10S Handheld Thermal Monocular
- Quick Start Guide
- Non-dust Cloth
- USB Cable
- Protective Bag
- Wrist Strap
| Weight | 2.5 kg |
|---|---|
| Dimensions | 25 × 25 × 10 cm |
Brand
HIKMICRO
