HIKMICRO FALCON HANDHELD FH25 THERMAL

HikMicro Falcon FH25 Handheld Thermal Monocular Camera. The FH25 is equipped with a 384 x 288 infrared detector and a 1,024 x 768 OLED display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and more. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as searching and rescuing, hiking, travel, hunting, livestock theft and security.

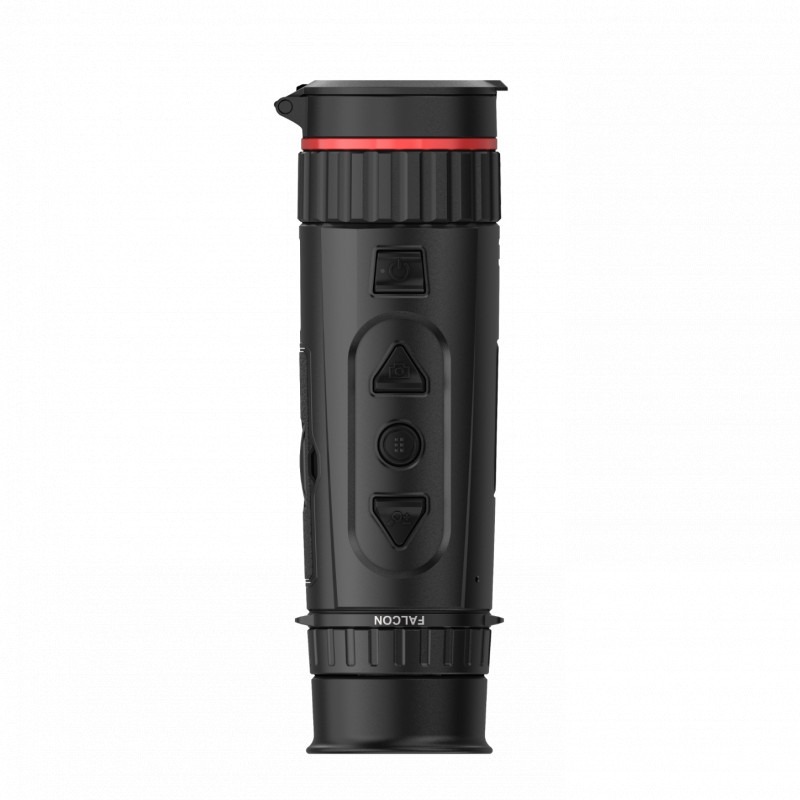

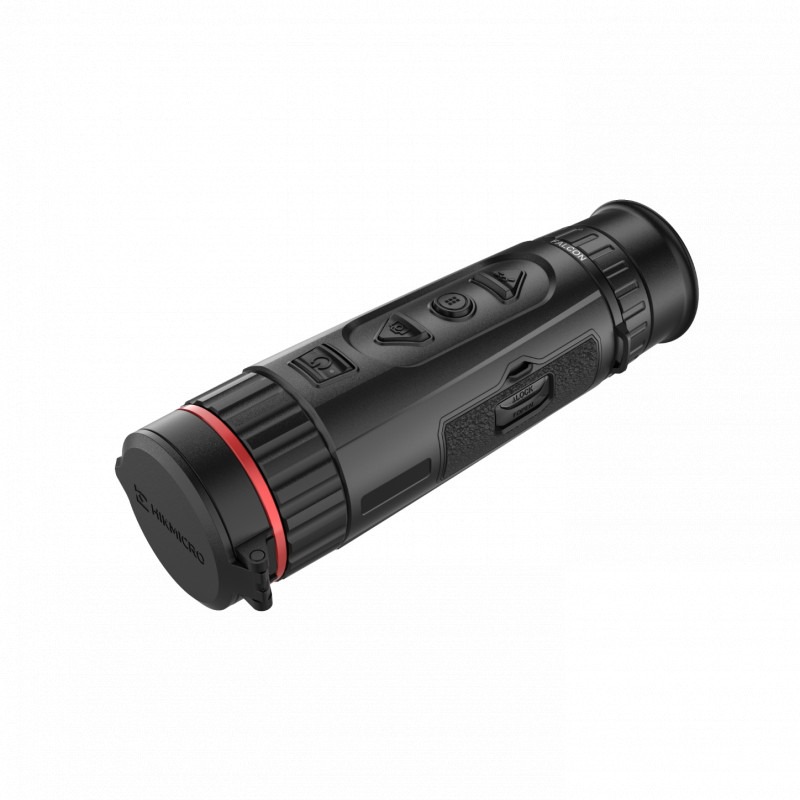

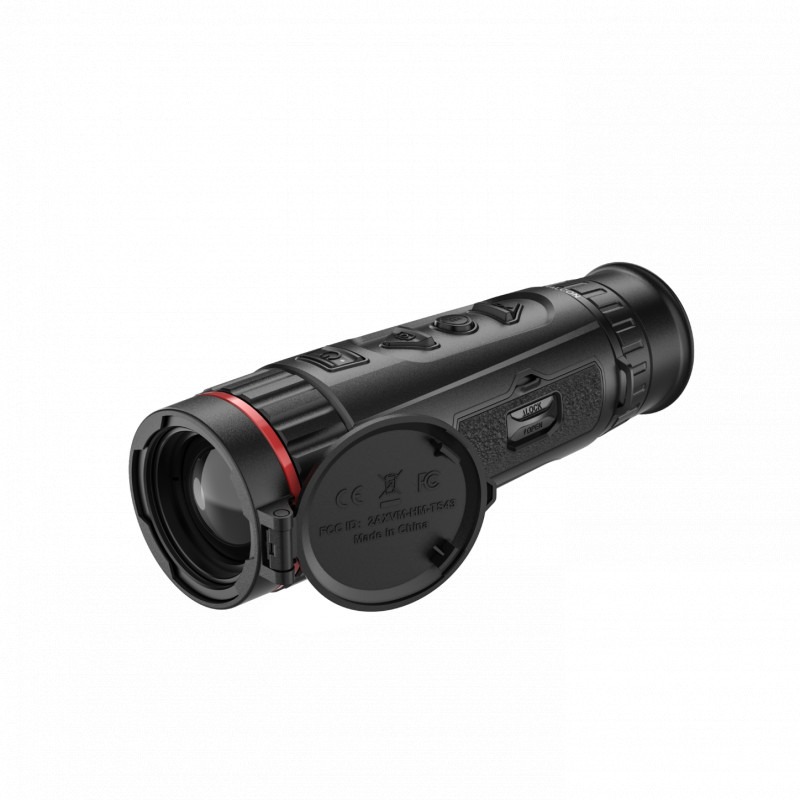

HikMicro Falcon FH25. (Model: HM-TS43-25XG/W-FH25)

The FH25 is equipped with a 384 x 288 infrared detector and a 1024 x 768 OLED display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and more. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as searching and rescuing, hiking, travel, hunting, livestock theft and security..

Storage: Built-in memory module (64 GB)
Record Video
Snapshot
Standby Mode
Wi-Fi Hotspot
Hot Track

Key Features

384 x 288 resolution with 12 µm sensor
High sensitivity thermal module NETD < 20 mK (@25º, F# = 1.0)¹
Replaceable and rechargeable Li-ion battery
Up to 7 hours continuous operation
Leading thermal image processing technology: Image Pro
1,024 x 768 resolution 0.39” OLED display

Extremely high thermal sensitivity ensures perfect detail recognition even in the most challenging weather conditions which is especially noticeable when the target and background has minimal temperature difference

Technical Specifications

Thermal Module

Image Sensor: VOx uncooled focal plane arrays
Resolution: 384 × 288
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: ≤ 20 mk (@25°C), F#=1.0
Focal Length: 25 mm
Field of View: 10.5° × 7.9° (H × V)
Digital Zoom: 1 ×, 2 ×, 4 ×, 8 ×
Aperture: F1.0
Focusing Distance: 2.5 m
Optical Magnification: 2.17
Detection Range: 1,200 m

Image Display

Monitor: 0.39”, OLED, 1,024 × 768
FFC (Flat Field Correction): Auto, manual, external correction
Palettes: Black hot, white hot, red hot, fusion

System

Storage: Built-in memory module (64 GB)
Record Video: Yes
Capture Snapshot: Yes
Standby Mode: Yes
Wi-Fi Hot Spot: Yes
Hot Track: Yes

Power Supply

Power: 5 V, 1.75 W
Battery Type: Replaceable and rechargeable Li-ion battery
Battery Operating Time: 7 hours continuous running with CVBA and hotspot function off (@25°C)
