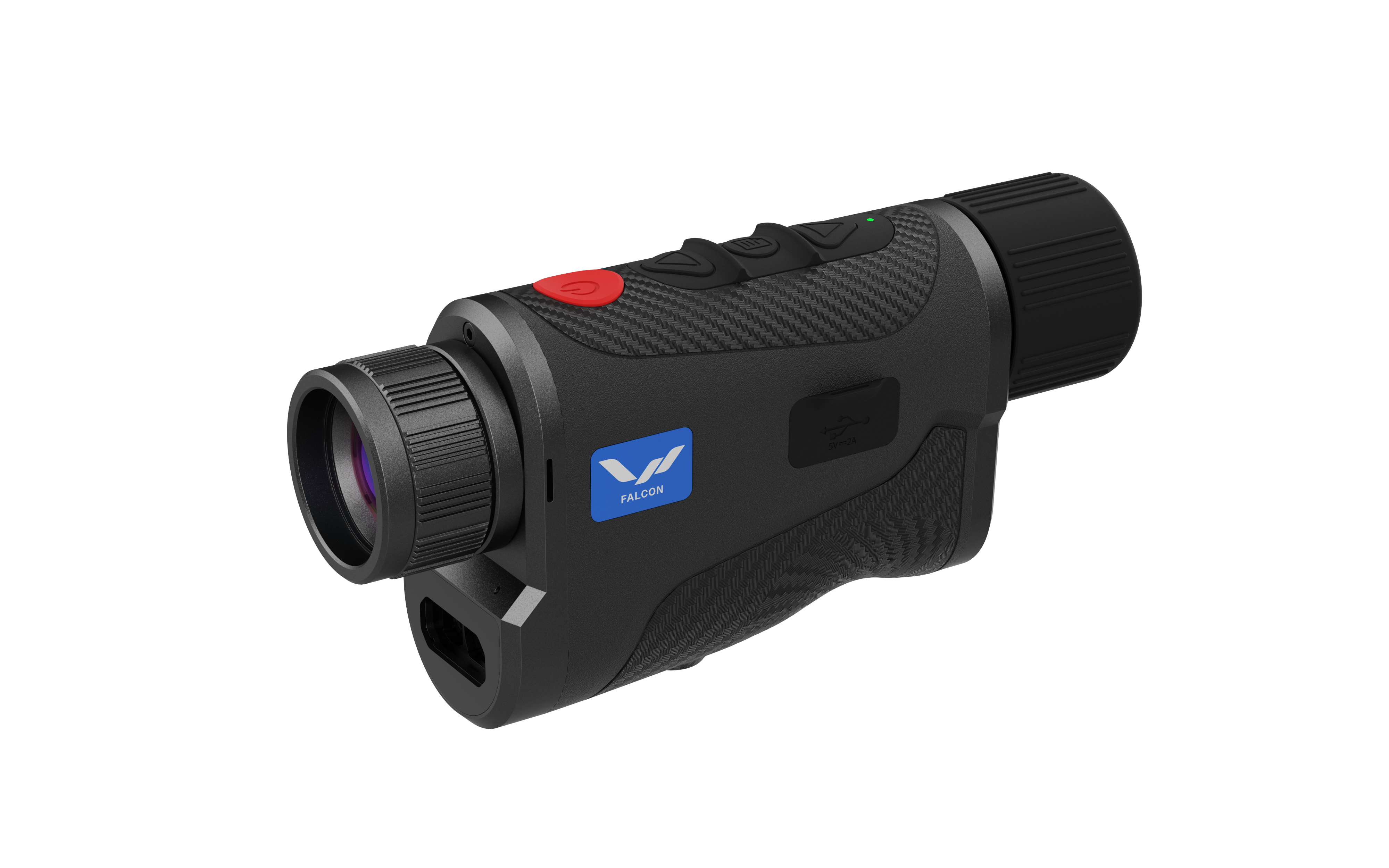

Falcon Augurer 35mm 640×512

Augurer (640×512) – Thermal Optics Overview

• Sensor Type: Uncooled VOx (Vanadium Oxide)

• Resolution: 640×512 (super sensitive)

• Frame Rate: 50 Hz

• Pixel Size: 12μm

• NETD (Noise Equivalent Temperature Difference): <18mK (indicating high sensitivity to temperature differences)

Optical Features:

• Objective Lens: 25mm / 35mm, F1.0

• Optics Magnification: 1.4X / 2X

• Continuous Digital Zoom: x1 / x2 / x4 / x8

• Eye Relief: 30mm

• Field of View: 17.5° x 13.1° / 12.5° x 9.4°

• Dioptre Adjustment: +5/-5 D

• Detection Distance (1.7m high, 0.5m wide target): 1250m / 1750m

• Close-up Range: 5m – ∞ (adjustable from 5m to infinity)

Display:

• Type / Resolution: 0.39 inch AMOLED, 1024×768 resolution

• Color Palettes: Black Hot, Highlight, Green Hot, Fusion

Operational Characteristics:

• Power Supply: 3-4.2V

• Battery: 18650/3500mAh

• External Power Supply: 5V (USB)

• Operating Time: 5 hours (at 22°C)

• Waterproof Rating: IP66 (highly resistant to water and dust)

• Operating Temperature Range: -20°C to 50°C

• Dimensions: 168.5mm x 46.5mm x 82.1mm / 176mm x 46.5mm x 82.1mm

• Weight: 436g / 430g

Video Recorder:

• Video / Photo Resolution: 1024×768

• Video / Photo Format: .mp4 (video) / .jpg (photo)

• Memory Type: Built-in 32GB memory card

WiFi:

• Frequency: 2.4GHz

• Standard: 802.11 b/g

• Line-of-Sight Reception Range: 15m

Rangefinder (if applicable):

• Wavelength: 905nm

• Max Measuring Range: 1000m

• Measuring Accuracy: ±1m
